Tire Type Mobile Jaw Crushing Plant

Tire Type Mobile Jaw Crushing Plant

Transportation Width: 2550 - 2590 mm

Transportation Height: 3750 - 4500 mm

Weight: 39 - 83 t

Capacity: 90 - 450 t/h



Chat Online Get Latest Price

Overview

Tire Type Mobile Jaw Crushing Plant Introduction

Tire type mobile jaw crushing plant (other names: tyre mobile jaw crusher, trucked mobile crusher, mobile jaw crusher) is a newly developed crusher station, with wide range, reasonable design and strong mobile crushing capacity, and it can move in rugged mountains. Tire type mobile jaw crushing plant is entirely designed standing in the customer's perspective, can reduce costs for customers, so it's one of the best mobile crusher stations used in metallurgy, chemical industry, building materials, and other industries.

Fote machine is the professional china mobile crushers, mobile jaw crusher production model and diverse, flexible and self-closing, welcome.

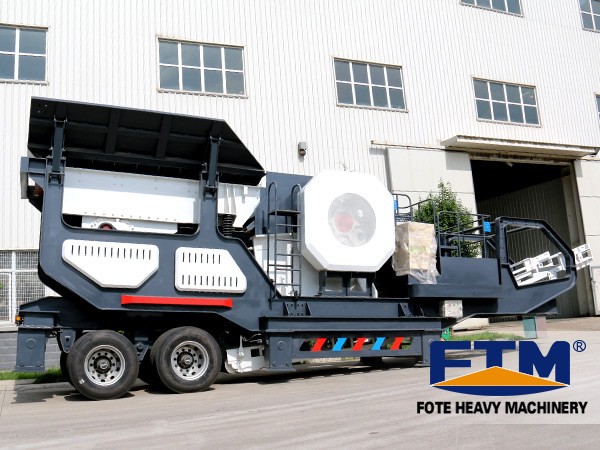

Mobile Jaw Crushing Plant

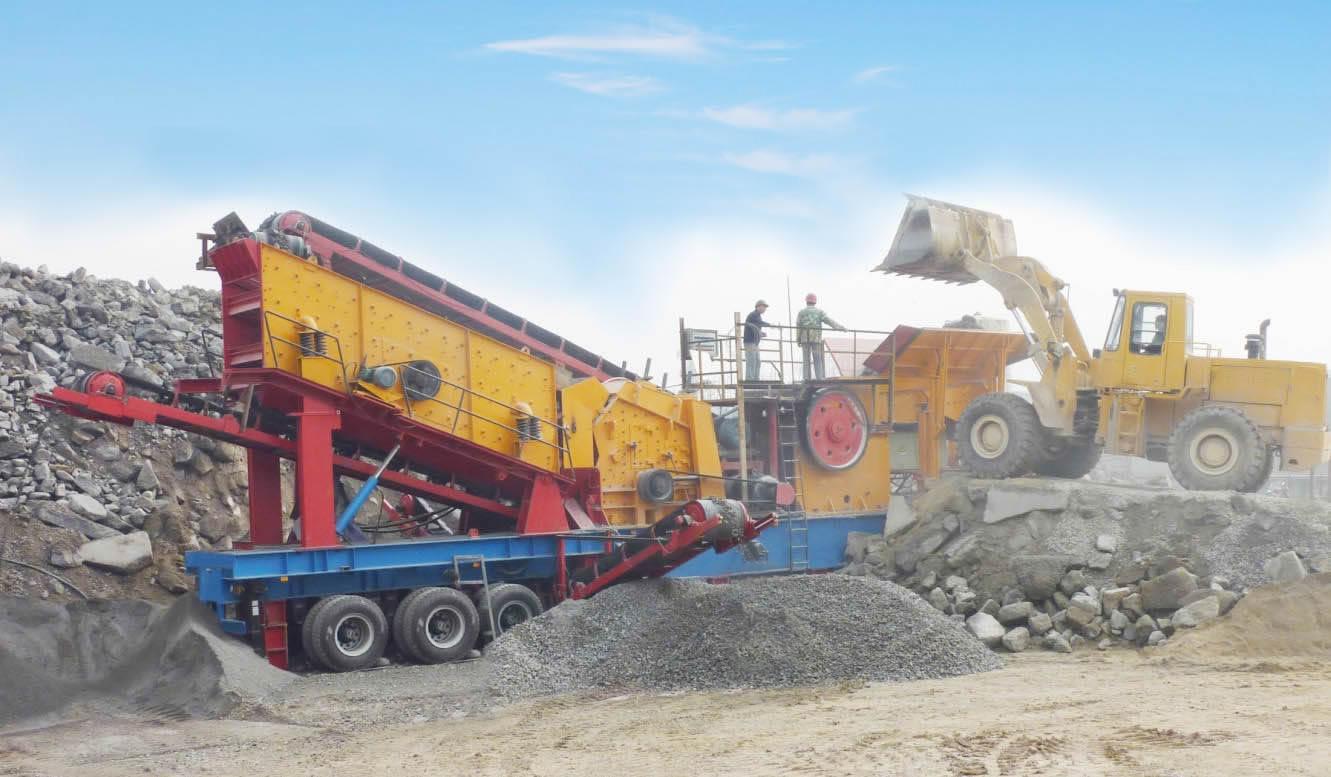

mobile crusher

Tire Type Mobile Jaw Crushing Plant Features

1. Tyre mobile jaw crusher has short length, and different crushers are installed on a separate removable chassis, and it has short wheelbase and small turning radius, so it can be driven flexibly on rough roads of crushing plant.

2. Tire type mobile jaw crushing plant can process material on site, without having to move out of the scene, which can greatly reduce transportation expense of raw material.

3. Tire type mobile jaw crushing plant can be composed to systems of "screening after the crushing" and "crushing after the screening" according to requirements of different crushing processes. According to the actual needs, Fote tire type mobile jaw crushing plant can be combined into two-stage crushing and screening system of coarse crushing and fine crushing, or three-stage crushing and screening system of coarse crushing, general crushing and fine crushing, and it also can work independently, with strong flexibility.

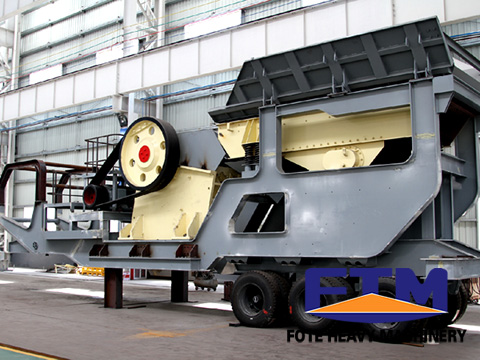

Mobile Jaw Crushing Plant

Tire Type Mobile Jaw Crushing Plant Working Principle

Materials are evenly transported into the crusher by feeder, then be crushed by jaw crusher, to realize circle crushing through closed system constituted by circular vibrating screen. Finished material will be discharged and transported through conveyor for continuous crushing operations. The circular vibrating screen of jaw mobile crusher can be removed according to the actual production needs, to achieve the initial crushing of materials. The wheel mobile impact crusher is convenient and flexible to be used together with other crushing equipment.

Parameter

Items FTM938E69 FTM1142E710 FTM1349E912
Transportation(without and with length(mm) diesel generator 12000 13500 14600
Transportation width(mm) 2550 2550 2950
Transportation height(mm) 3750 4500 4500
Max. length(mm) 12500 1400 14600
Max. width(mm) 2900 2950 3300
Max. height(mm) 4100 4900 5300
Weight(t) 39 57 83
Tyre configuration Dual axial Tri-axial Tri-axial
Jaw crusher PE600×900 PE750×1060 PE900×1200
The Maximum feeding size(mm) 480 630 750
Discharge opening size (mm) 65-160 80-140 100-200
 Capacity(t/h) 90-180 110-320 220-450
Vibrating feeder ZSW380×95 ZSW490×110 ZSW490×130
Main belt conveyor B800×8.5M B1000×9M B1200×9.5M
Side-opening belt conveyor(optional) B450×3M B500×3.5M B650×4M
Genset (optional)(kw) 160 200 220
Iron separator (optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-12
