Shaking Table Introduction

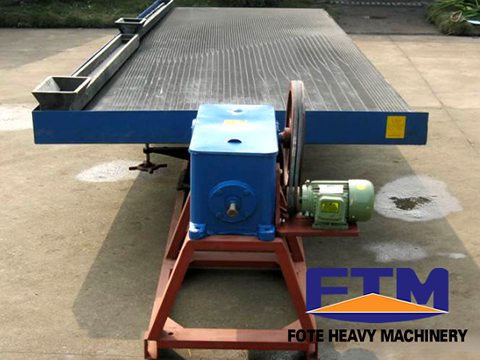

Shaking table is also called gold shaker table, concentrator table or shaking table separation. Gold shaker table is a gravity ore dressing equipment used to separate fine materials.
Concentrator table is widely used to sort tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, titanium, coal, etc. When the shaking table separation is used to separating tungsten and tin ore, the effective recycling particle size range is 2-0.04mm.
Shaking Table Features
Gold shaker table integrates technology of domestic concentrator table and gravity dressing and it has the advantages of high concentration ratio, high dressing efficiency and simple operation. Compared with traditional technology, Fote shaking table does not need reagent and is with low energy consumption and high cost performance ratio.
Shaking Table Working Principle

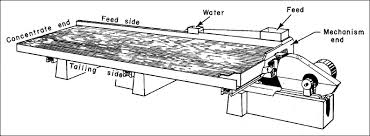

Fote shaker table or gold shaker table refers to that on a slant table, relying on the combined effect of the symmetrical and reciprocating motion of the mechanical slabstone and the lamella slant water flow, the ore particles become loose, layered and zoned on the table, thus separating the minerals based on density.
Parameter
Name | Grit concentrator table |
Fine sand concentrator table |
Sludge concentrator table |
|
Bed surface Dimensions |
Length (mm) |
4450 | 4450 | 4450 |
Driving part Width (mm) |
1855 | 1855 | 1855 | |
Concentrate part Width (mm) |
1546 | 1546 | 1546 | |
Max.feeding size(mm) |
2 | 0.5 | 0.15 | |
Feeding amount (t/d) |
30-60 | 10-20 | 15-25 | |
Feeding thickness (%) |
25-30 | 20-25 | 15-25 | |
Stroke (mm) |
16-22 | 11-16 | 8-16 | |
Frequency (f) |
45-48 | 48-53 | 50-57 | |
Bed surface Water quantity (t/d) |
80-150 | 30-60 | 10-17 | |
Bed surface Horizontal obliquity(°) |
2.5-4.5 | 1.5-3.5 | 1-2 | |
Bed surface Portrait obliquity(%) |
1.4 | 0.92 | ---- | |
Table board corner(°) |
32-42 | 40 | 42 | |
Concentrating area(㎡) |
7.6 | 7.6 | 7.6 | |
Bed surface Length ratio |
2.6 | 2.6 | 2.6 | |
Shape of side-bed surface |
Rectangle | Zigzag | Triangle | |
Motor power(kw) |
1.1 | 1.1 | 1.1 | |
Transmission device |
Eccentricity Linkage |
