Overview

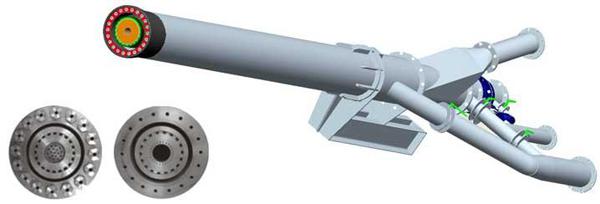

Rotary Kiln Burner Introduction
Rotary kiln burner is also called rotary kiln combustor, burner of rotary kiln or combustor of rotary kiln. Rotary kiln burner is a kind of oil-gas dual suitable burner to be used in metallurgy, chemical industry, cement and other industries.
At present, this series of burners are suitable for natural gas, coke oven gas and producer gas, light oil, heavy oil and residual oil and other fuels.
Parameter
No. | Model | Normal Combustion(t/h) | Max Amount(t/h) | Weight | Coal fan | Net Fan | ||
Airflow(m3/min) | Pressure(kpa) | Airflow(m3/min) | Pressure(kpa) | |||||
1 | FT-1 | 0.5-1.5 | 2.0 | 1200 | 6.8 | 39.2 | 10.6 | 39.2 |
2 | FT-2 | 1.5-2.5 | 3.0 | 1500 | 13.3 | 39.2 | 22.6 | 39.2 |
3 | FT-3 | 2.5-3.5 | 4.0 | 1950 | 20.0 | 29.4 | 34.2 | 39.2 |
4 | FT-4 | 3.0-4.5 | 5.0 | 2100 | 25.0 | 29.4 | 42.5 | 39.2 |
5 | FT-5 | 3.5-5.0 | 6.0 | 2300 | 28.3 | 29.4 | 48.2 | 39.2 |
6 | FT-6 | 4.0-6.0 | 7.0 | 2500 | 33.3 | 29.4 | 59.6 | 39.2 |
7 | FT-7 | 4.5-7.0 | 8.0 | 2800 | 38.4 | 29.4 | 69.2 | 39.2 |
8 | FT-8 | 5.0-8.0 | 9.0 | 3000 | 43.3 | 29.4 | 77.9 | 39.2 |
9 | FT-9 | 6.0-9.0 | 10 | 3200 | 50.0 | 29.4 | 90.0 | 39.2 |
10 | FT-10 | 6.5-10.0 | 11 | 3600 | 55.0 | 29.4 | 99.5 | 39.2 |
11 | FT-11 | 7.0-11.0 | 12 | 3900 | 60.0 | 29.4 | 114.0 | 39.2 |
12 | FT-12 | 8.0-12.0 | 13.5 | 4300 | 66.7 | 29.4 | 140.2 | 39.2 |
13 | FT-13 | 12.0-16.0 | 18 | 5000 | 93.4 | 29.4 | 196.8 | 39.2 |
14 | FT-14 | 14.0-18.0 | 20 | 5800 | 106.7 | 29.4 | 224.0 | 39.2 |
