Overview
Quartz Crusher Introduction
Introduction to granite crusher
Cobble crusher, calcite crusher, granite crusher, basalt crusher, quartz crusher and dolomite crusher belong to rock crusher and they are all important mining crushers of our company, and they can be divided into jaw crusher, cone crusher, hammer crusher, impact crusher, etc. This kind of crusher not only crushes large chunks of materials, but also deals with materials whose edge lengths are below 100~500 mm.
Advantages of granite crusher
1. High crushing efficiency, small energy consumption
2. High crushing ratio, uniform granularity
3. Low cost
4. Stable structure, reliable performance
Crushing methods
1. Squeezing, crushers uses a pressing force to crush the material.
2. Splitting, crushers uses splitting power produced when tines wedge into materials to crush materials.
3. Bending, materials are bent and broken, like the two-point beam which stands concentrated load.

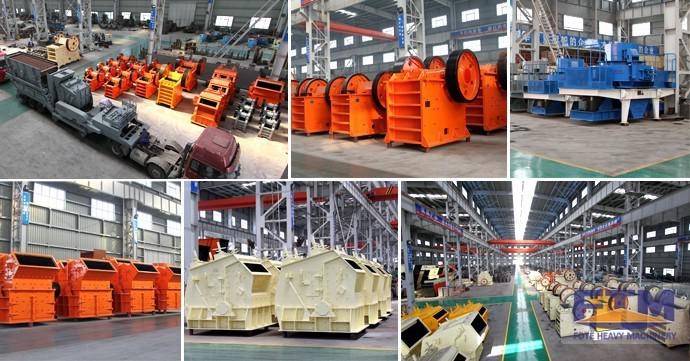

Henan Fote Heavy Machinery Co., ltd. is a large-scale and professional manufacturer of mining machinery and general machinery, with two professional industrial workshops and more than 300 machine machining, welding and assembly equipment with large and medium size. Fote Machinery has won wide praise at home and abroad by the exquisite techniques and advanced technology, and it's also become the large mining machinery export base in China.
For more details, please leave us a message by filling the lower form, thank you!
Parameter
Model
|
Feed opening
(mm) |
Max.feeding size
(mm) |
Adjusting range of discharge opening
(mm) |
Processing capacity
(t/h) |
Rotation speed of eccentric shaft
(r/min) |
Motor power
(kw) |
Total weight
(t) |
Dimensions
(L×W×H) (mm) |
PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 4P 5.5 | 0.8 | 720×660×850 |
PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 1.2 | 910×750×990 |
PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 4P 11 | 1.5 | 1000×870×990 |
PE-250×400 | 250×400 | 210 | 20-60 | 5-21 | 300 | 6P 15 | 2.8 | 1300×1090×1270 |
PE-400×600 | 400×600 | 340 | 40-100 | 16-64 | 275 | 6P 30 | 7 | 1730×1730×1630 |
PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 6P 55 | 12 | 1980×2080×1870 |
PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 6P 55 | 15.8 | 2070×2000×1920 |
PE-600×900 | 600×900 | 500 | 65-160 | 50-160 | 250 | 6P 55 | 17 | 2190×2206×2300 |
PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 8P 110 | 29 | 2660×2430×2800 |
PE-800×1060 | 800×1060 | 640 | 130-190 | 130-330 | 250 | 8P 110 | 29.8 | 2710×2430×2800 |
PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 8P 110 | 30.7 | 2740×2430×2800 |
PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 8P 110 | 31.5 | 2810×2430×2800 |
PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 8P 110 | 33 | 2870×2420×2940 |
PE-900×1200 | 900×1200 | 750 | 95-165 | 220-380 | 200 | 8P 110 | 52 | 3380×2870×3330 |
PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 8P 110 | 55 | 3480×2876×3330 |
PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 6P 160-220 | 100.9 | 4200×3300×3500 |
PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 8P 280-355 | 139 | 5160×3660×4248 |
PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 3.8 | 1200×1530×1060 |
PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 6P 22 | 5.5 | 1380×1750×1540 |
PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 7 | 1560×1950×1390 |
PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 9.7 | 2140×1660×1500 |
PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 15.6 | 2720×1950×1600 |
