Hydraulic Briquette Machine

Hydraulic Briquette Machine

Output: 1 - 20 t/h

Weight: 0.7 - 13 t



Chat Online Get Latest Price

Overview

Hydraulic Briquette Machine Introduction

Hydraulic briquetting machine or hydraulic briquette machine can be used to suppressing and molding various mineral powders, metal powders, coal powders, coke powders and other materials.

Due to the mandatory squeezing force generated from rollers, the products made of hydraulic ball press machine are with high density, high strength and high hardness. The pressure rollers are made of hard materials with size of 650mm, with good wear resistance.

Hydraulic Briquette Machine Features

The hydraulic briquetting machine adopts hydraulic system which can increase the pressure intensity. Its principal axis is forged at 40cr by using the abrasion resistant alloy as its roller skin. Fote hydraulic briquette machine has compact structure and sturdy and durable performance.

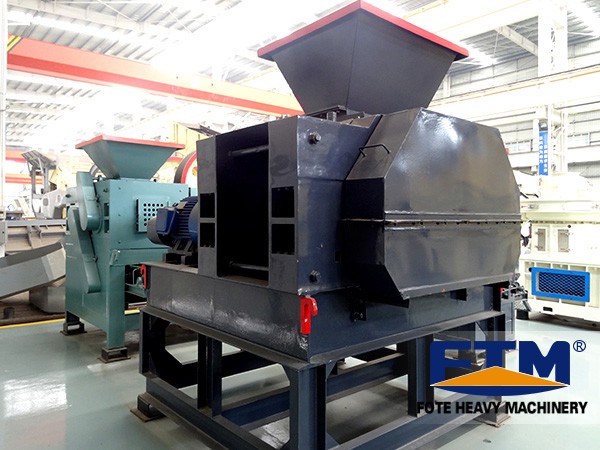

briquette machine

Hydraulic Briquette Machine



Hydraulic Briquette Machine Working Principle

The hydraulic briquette machine runs relying on the cooperation of driving and driven shaft supported by the exposed gear. After the belt wheel and cylindrical gear reducer, the power is transferred to the pin coupling shaft. Hydraulic pressure device is installed on the back of the driven shaft block. Driven by the electromagnetic speed regulating motor and after the belt wheel and worm reducer turn, the spiral feed device presses materials into the main feed port. As the constant matrix feature of the electromagnetic speed regulating motor, when the spiral feeder has the same pressing quantity with the inventory of the main body of the press machine, the feeding pressure will stay constant thus stabilizing the balling quality.

Parameter

Model Roll diamter
(mm)
Roll width
(mm)
Total pressure
(t)
Main motor power
(kw)
Output
(t)
Weight
(t)
GY520-150 520 196 150 55 2.2-3.5 13
GY650-220 650 200 220 110 4-6.5 19.2
GY750-300 750 280 300 185 6-8.5 34
GY1000-350 1000 440 350 250 10-15 50.8
GY1000-450 1000 504 450 280 14-17 58.5
GY1000-500 1000 504 500 315 15-20 58.5
GYS1000-500 1000 600 500 280 17-21 56.5
GY1000-540 1000 900 540 185Kw×2 30-35 60
GY1200-800 1200 900 800 280Kw×2 40 110
GY1400-1000 1400 1000 1000 400Kw×2 50 156
