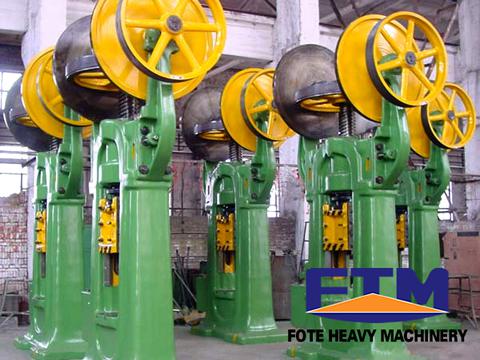

Double Disk Friction Screw Press Introduction
Double disk friction screw press, also named as double-disk friction screw press, double-disk friction screw press machine or double disk friction press, is widely used in machinery manufacturing industry, for die forging, horizontal forging, bending, calibration, pressure-sizing and other mechanical work. Double disk friction screw press is with greater versatility, simple and affordable structure, easy installation, so double-disk friction screw press machine is widely used in press shop, forging and die forged workshop in building, auto, tractor, aviation and other industries, as well as blanking and suppressing of refractory.
Double Disk Friction Screw Press Features
1. Double disk friction screw press machine uses single-sided die-molding process, so only a model can complete many working steps.
2. The several processes of double disk friction press are done by machines with low requirement on operators, so accurate operation in a short time is available, which can improve its production efficiency.
Double Disk Friction Screw Press Working Principle
1. The motor of double-disk friction screw press leads transmission shaft to rotate in one direction via V-belt, and two friction disks installed on the transmission shaft also rotates along with the drive shaft.
2. When you press down the slider button, reverse valve, and move steering cylinder piston down, the axis will move to the right along with the main shaft via the lever system. The left friction disk compresses flywheel, and drives flywheel to rotate and change the circular motion of the flywheel into linear movement relying on friction.
3. After the sliding block contacting with work pieces through mold, all the energy generated in the movement of flywheel and the sliding block will release completely, and the inertia moment of flywheel will be translated into forged force of work piece through spiral institutions. After one hammering, press by button to rise sliding block, reverse valve, move cylinder piston upwards via lever system, right friction disc press tightly on the flywheel, then flywheel rotates reversely, sliding block returns back. After the sliding block lifting up to scheduled height, reverse valve, reset spring to make friction disc in the meso-position, meanwhile, control the sliding block stopping in the stated location.
Parameter
Model | Nomal force kn |
Max. force kn |
Slide stroke (mm) |
Number of strokes (min) |
Min. enclosed height (mm) |
Height of base plate (mm) |
J54-630 | 6300 | 10000 | 600 | 11 | 650 | 180 |
J54-1000c | 10000 | 16000 | 700 | 10 | 700 | 200 |
J54-1600C | 16000 | 25000 | 700 | 10 | 750 | 200 |
J54-1600D | 16000 | 25000 | 700 | 10 | 750 | 200 |
J54-2500C | 25000 | 40000 | 800 | 9 | 980 | 300 |
J54-3150 | 31500 | 50000 | 500 | 9 | 1100 | 300 |
Model | Working table-board (mm) |
Back surface of Sliding block (mm) |
Max. ejector force kn |
Ejecting stroke (mm) |
Dimension (mm) |
Main motor power (kw) | Quality(kg) |
J54-630 | 920×820 | 760×700 | 10 | 200 | 3800×5962×6060 | 55 | 51650 |
J54-1000c | 1200×1000 | 1190×800 | 10 | 200 | 4700×6640×7650 | 90 | 88900 |
J54-1600C | 1250×1100 | 1000×900 | 10 | 200 | 4500×5742×8090 | 132 | 103825 |
J54-1600D | 1250×1100 | 1000×900 | 10 | 200 | 4500×5742×8090 | 2×75 | 103825 |
J54-2500C | 1560×1200 | 1280×1060 | 10 | 200 | 1860×6280×7715 | 220 | 220000 |
J54-3150 | 2000×1300 | 1900×1120 | 10 | 200 | 7000×5400×10220 | 2×160 | 350000 |
