Crawler-type Mobile Crusher

Crawler-type Mobile Crusher

1. Little weight, small size and suitable for narrow working sites

2. Easy to transport, and the crawler moving mode does no harm to the road surface

3. Complete security protection

4. Be able to craw up in mining industry and hydroelectricity station



Chat Online Get Latest Price

Overview

Crawler-type Mobile Crusher Introduction

Crawler-type mobile crusher, also known as tracked mobile crusher, is one of the most convenient mobile devices today. Crawler-type mobile crusher has a pair of tracks, driving forward mobile crushing station, and the device is technologically advanced.

It is precise because of its crawler moving parts, so it's named tracked mobile crushing station. Crawler-type mobile crusher is developed from the world's most advanced technology, so it's in the course of the most secure, stable and advanced equipment.

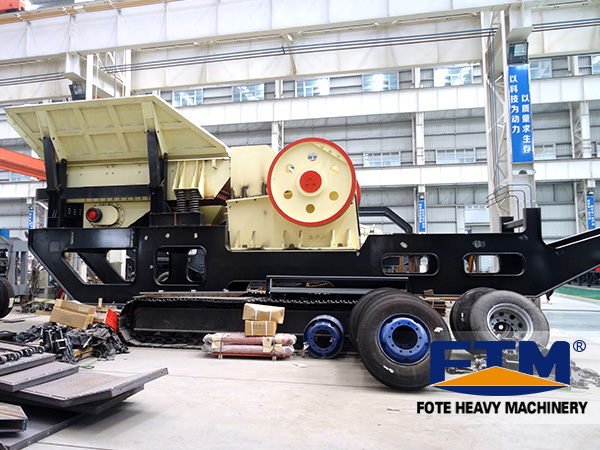

Crawler-type Mobile Crusher

Categories of crawler-type mobile crusher:

Crawler-type mobile crusher has several models, and can be divided into four categories according to different standards: crawler-type mobile cone crusher, crawler-type mobile jaw crusher, crawler-type mobile impact crusher and crawler-type mobile crusher.

Parameter

Classification
of items
A type Dual power crawler type mobile
feeding and screening plant
B type Dual power crawler type mobile
 feeding and screening plant
models Y3S154GL Y3S184GL Y3S186GL Y3S154BL Y3S184BL Y3S186BL
Vibrating
screen(mm)
3YZS1548 3YZS1848 3YZS1860 3YZS1548 3YZS1848 3YZS1860
Main belt
conveyor
Belt conveyor feeding Sorting and feeding
Belt
conveyor
Feeding
belt
conveyor
B1000×4M B1000×4M B1200×4.5M B1200×3M B1200×3M B1200×3M
Main belt
conveyor
B800×5M B1000×5M B1000×5M B1000×8M B1200×8M B1200×9M
Under
vibrating
 screen
B800×4.5M B1000×4.5M B1000×5.5M B800×7M B1000×7M B1000×8M
Left side-opening
 belt conveyor
B500×7.3M B500×7.3M B650×7.3M B500×7.3M B500×7.3M B650×7.3M
Right side-opening
belt conveyor1
B500×7.3M B500×7.3M B650×7.3M B500×7.3M B500×7.3M B650×7.3M
Right side-opening
belt conveyor2
B500×7.3M B500×7.3M B500×7.3M B500×7.3M B500×7.3M B650×7.3M
Genset(kw) 120 120 120 120 120 120
Transportation
length(mm)
12300 12300 13500 12000 12000 13200
Transportation
width(mm)
2700 2920 2920 2900 3150 3150
Transportation
height(mm)
3900 3900 3900 3600 3600 3700
Transportation
Weight(t)
28 30 34 28 32 35
