Cone Crusher

Cone Crusher

Feed Size: 65 - 300 mm

Processing Capacity: 12 - 1000 t/h

Processible Materials: Granite, basalt, quartz stone, iron ore, pebbles, green stone, copper ore and limestone.

Application Range: Metallurgy, construction, road construction, chemical engineering, phosphate industry and mining.



Chat Online Get Latest Price

Overview

Cone Crusher Introduction

Cone crusher has another name of hydraulic cone crusher, and it is used to crush various raw materials in the following industries of metallurgy, building materials, road building, chemical and silicate.

 China hydraulic cone crusher has advantages of larger crushing ratio, higher crushing efficiency, lower energy consumption and regular grain size, so it's suitable for crushing various ores and stones. Fote Machinery is famous cone crushers manufacturer and cone crusher supplier in China.

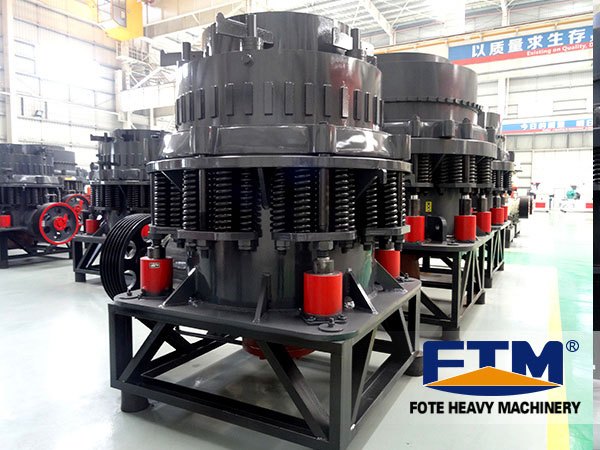

Cone Crusher

Cone Crusher Features

1. Strong production capacity, stable performance;
2. Long life of quick-wear parts, low operating cost;
3. Continuous lubrication is provided by lubrication oil station for reducing maintenance time.

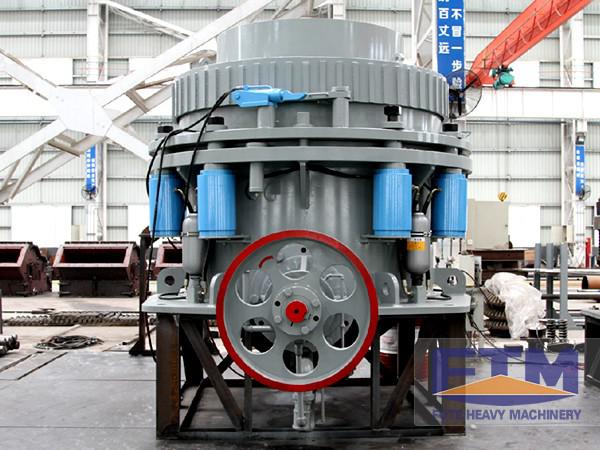

Cone Crusher

cone crusher

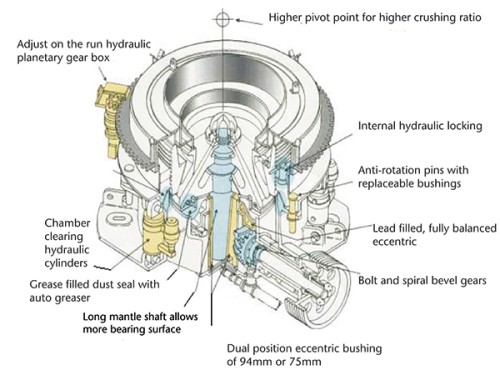

Cone Crusher Working Principle

When hydraulic cone crushers begin to work, the electro motor drives the eccentric sleeve through the spring coupling, drive shaft and a pair of angle gear, so that the crushing wall of cone crusher gets close to and then gets away from the surface of the rolling mortar wall fixed on the adjusting sleeve, and the ores inside the crushing chamber will be constantly impacted, squeezed and bent to be crushed.

Parameter

Specification Model Diameter
of large
end of
crushing
 cone
(mm)
Max.feeding
size(mm)
Width of
discharge
opening
(mm)
Processing
capacity
(t/h)
Motor
power
(kw)
Total
weight
(t)
Dimensions
(L×W×H)
(mm)
Φ600 PYB600 600 65 12-25 40 8P   30 5 2234×1370×1675
PYD600 35 3-13 12-23 5.5 2234×1370×1675
Φ900 PYB900 900 115 15-50 50-90 8P   55 11.2 2692×1640×2350
PYZ900 60 5-20 20-65 11.2 2692×1640×2350
PYD900 50 3-13 15-50 11.3 2692×1640×2350
Φ1200 PYB1200 1200 145 20-50 110-168 8P   110 24.7 2790×1878×2844
PYZ1200 100 8-25 42-135 25 2790×1878×2844
PYD1200 50 3-15 18-105 25.3 2790×1878×2844
Φ1750 PYB1750 1750 215 25-50 180-360 8P   160 50.3 3910×2894×3809
PYZ1750 185 10-30 80-210 50.3 3910×2894×3809
PYD1750 85 5-13 60-180 50.2 3910×2894×3809
Φ2200 PYB2200 2200 300 30-60 420-700 8P   280-260 80 4622×3302×4470
PYZ2200 230 10-30 130-410 80 4622×3302×4470
PYD2200 100 5-15 80-200 81.4 4622×3302×4470
